Specification of Standard Magnum
ultraviolet open channel water disinfection system
Model
Peak low Rate GPM)
Peak Flow Rate (GPD)
Quantity Of Lamps

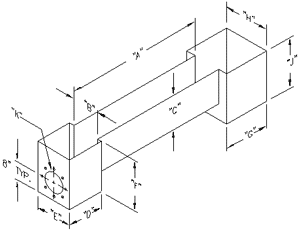

Channel Size "A"x"B"x"C"
(inches)
Transition Box Size "D"x"E"x"F"
Weir Box Size "G"x"H"x"J"
(inches)
Inlet/Outlet Flange Size
"K"
Channel Width
Effluent Depth
HC2-64/2WC
69.4
100,000
4
96"x6"x15"
16"x14"x22"
20"x14"x22"
6"
6"
6"
HC2-64/3WC
104.2
150,000
6
96"x9"x15"
16"x16"x22"
20"x16"x22"
8"
9"
6"
HC2-64/4WC
138.9
200,000
8
96"x12"x15"
16"x16"x22"
20"x20"x22"
8"
12"
6"
HC2-64/5WC
173.6
250,000
10
96"x15"x15"
16"x22"x22"
20"x25"x22"
8"
15"
6"
HC2-64/6WC
208.3
300,000
12
96"x18"x15"
16"x22"x22"
20"x30"x22"
8"
18"
6"
HC2-64/7WC
243.0
350,000
14
96"x21"x15"
16"x28"x22"
20"x35"x22"
8"
21"
6"
1 Channel, Transition Box & Weir
Box are Stainless Steel.
2 Lamp Modules and Electronic Enclosure omitted for clarity.
3 Flow rates are based on:
- Maximum Total Suspended Solids (TSS) of 30mg/l
- Maximum Biological Oxygen Demand (BOD) of 30 mg/l
- Minimum Ultraviolet Transmission of 65% per centimeter
4 Contact factory for further information
1 Ultraviolet system does not include concrete
channels.
2 Lamp Modules and Electronic Enclosure omitted for clarity.
3 Flow rates are based on:
- Maximum Total Suspended Solids (TSS) of 30mg/l.
- Maximum Biological Oxygen Demand (BOD) of 30 mg/l.
- Minimum Ultraviolet Transmission of 65% per centimeter.
4 Contact factory for further information.
